Products » Compressor Combi Cooler » AOC Series

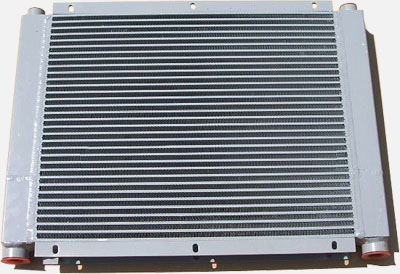

Gin Stone’s compact compressor cooler units is for combining the cooling air and oil in one unit. A variety of specifications combi-coolers with flow capacities from 20-120l/min used on compressor from 7.5kw to 110kw.

-contact with GINSTONE for PDF DATASHEET

Features:

» Bar & Plate Brazed Aluminum Core

» Side by side, Combination design-Cools rotary screw compressor

» Oil and compressed air in single combined core

» Ideal for conversions, stringent space » requirements and remote location mounting

» Best Heat Transfer per given size

» Nine combi-coolers with flow capacities from 20-120l/min

» Used on compressor from 7.5kw to 110kw

Materials:

» Core: Brazed Aluminum Bar and Plate

» Tanks: 5052 Aluminum

» Nose Bar & Little Bar: 3003 Aluminum

A» ir Fin, Tabulator & End Plate: Aluminum

» Connections: Aluminum

» Core Mounting Brackets: Brazed Aluminum

Ratings:

» Maximum Working Pressure: 16 BAR

» Environment Temperature: 35°C
