Products » Hydraulic Combi Cooler » OCC Series

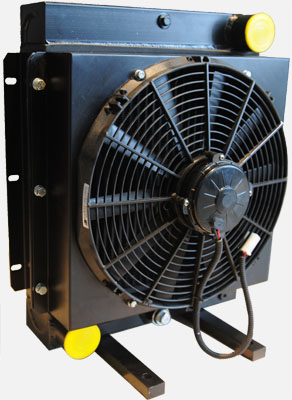

GIN STONE STANDAGIN STONE STANDARD HYDRAULIC OIL COOLERS are ideal for many uses including on-road & off-road vehicles and industrial hydraulic applications. We can supply any unit powered by AC, DC or hydraulic motors; with or without supporting feet; one or two pass application and even fitted with thermostat controls.

-contact with GINSTONE for PDF DATASHEET

Features:

» Bar & Plate Brazed Aluminum Core

» Rugged, Lightweight and Compact

» High performance and working pressure-even for Heavy duty hydraulic and lubrication applications.

» Air-side fin design minimizes fouling

» Welded aluminum fittings / ports

» Standard BSP ports

» 12 or 24 volt DC fans

» Hydraulic fan motor drive available

» Customized units available

Materials:

» Cooler: Aluminum

» Fan Guard: Plastic

» Shroud: Powder Painted Iron

» Fan Blade: Plastic

Ratings:

» Maximum Working Pressure: 26bar

» Ambient temperature:：30℃

» Hydraulic oil maximum inlet temperature：70℃
